The AD7864 is a high-speed, low-power, 4-channel, simultaneous sampling 12-bit analog-to-digital converter (ADC) that operates from a single 5 V supply. Designed by Analog Devices, the AD7864ASZ-3 features four track-and-hold amplifiers, a 2.5 V internal reference, an on-chip clock, and a high-speed parallel interface. This component is optimized for applications requiring the preservation of relative phase information across multiple input signals.
The AD7864ASZ-3 is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery for your critical supply chain needs.
Manufacturer: Analog Devices Inc.
Package: 44-Lead MQFP
Part Number: AD7864ASZ-3
Stock: 100 pcs
Date Code: 25+
Key Technical Specifications of ADI AD7864ASZ-3
| Feature | Specification |
| Resolution | 12-Bit |
| Input Range | ±2.5 V |
| Sampling Rate | Up to 500 kSPS (Single Channel) |
| Supply Voltage | 5 V |
| Operating Temp | -40°C to +85°C |
| Package | 44-Lead MQFP |
| RoHS Status | Compliant |
| Packaging | Tray (Contact for T&R availability) |
Applications of AD7864ASZ-3
The AD7864ASZ-3 is highly versatile and widely used in precision industrial and communication systems:
AC Motor Control: Provides the high-speed, simultaneous sampling necessary for precise vector motor
control.
Data Acquisition Systems: Ideal for applications requiring simultaneous multi-channel sampling.
Uninterrupted Power Supplies (UPS): Offers reliable conversion for power monitoring.
Communications: Suitable for demanding signal processing environments.
Package Information of AD7864ASZ-3
The AD7864ASZ-3 is supplied in a high-density, industry-standard package designed for precision applications requiring thermal stability and compact board space.

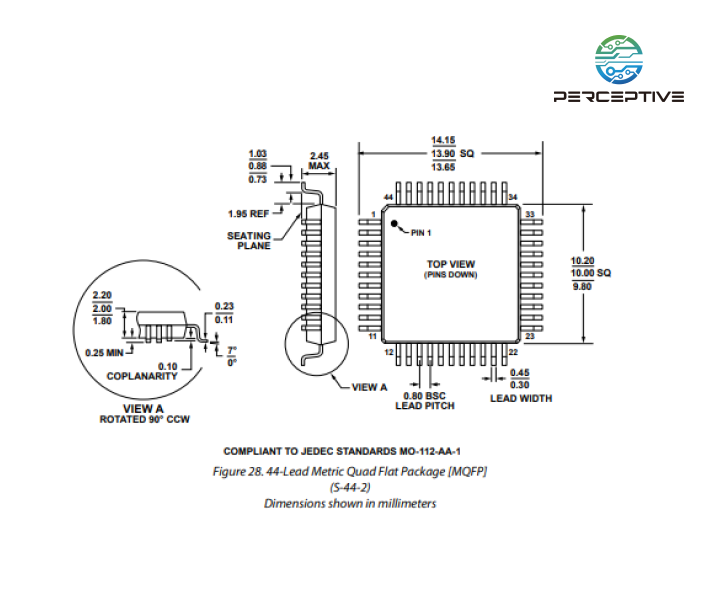

Package Type: 44-Lead MQFP (Metric Quad Flat Package)
Package Code: S-44-2
Key Characteristics: This 44-lead MQFP package ensures optimal thermal dissipation and high pin-count density, making it ideal for the multi-channel, high-speed requirements of the AD7864 series. It is designed to withstand standard industrial soldering processes while maintaining signal integrity across the full operating temperature range of -40°C to +85°C.
