In modern electronic systems, isolation is no longer just about safety—it is also about signal integrity, noise immunity, and system reliability. The ADUM6402CRWZ addresses these challenges by integrating both high-speed digital isolation and isolated power into a single compact solution. This article explores its datasheet highlights, core features, and real-world applications, offering practical insights for engineers and procurement professionals.

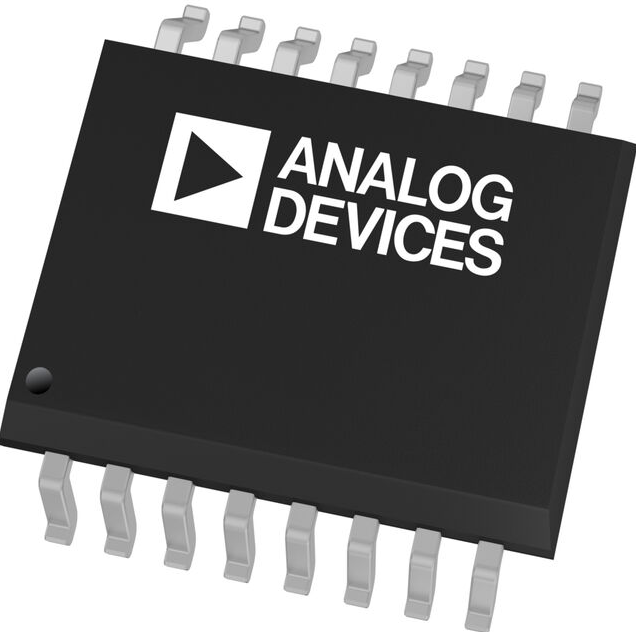

Overview of ADUM6402CRWZ
The ADUM6402CRWZ is part of the iCoupler® family developed by Analog Devices. It combines four independent digital isolation channels with isoPower® technology, enabling the transfer of both data and power across an isolation barrier.
Unlike traditional optocouplers, which rely on LED-based transmission, this device uses transformer-based isolation, delivering superior longevity, lower power consumption, and faster data rates. The integration of a DC-to-DC converter further reduces design complexity and board space.
Key Datasheet Specifications of ADUM6402CRWZ
From a system design perspective, the ADUM6402CRWZ offers a well-balanced combination of performance and integration:
Number of Channels: 4 (configurable direction)
Data Rate: Up to 25 Mbps
Isolation Voltage: 2.5 kVrms (UL recognized)
Integrated Isolated Power Output: Up to 500 mW
Input Supply Voltage: 3.0 V to 5.5 V
Output Voltage (isoPower): Adjustable via external components
Operating Temperature Range: –40°C to +105°C
Package: 16-lead SOIC wide-body
A key differentiator is the integrated isolated power, which eliminates the need for a separate transformer or isolated DC-DC module.
Core Features and Technical Advantages of ADUM6402CRWZ
1. Integrated Power and Data Isolation
The isoPower® feature allows the ADUM6402CRWZ to deliver both signal and power isolation in one IC, simplifying PCB design and reducing component count. This is particularly valuable in space-constrained applications.
2. High Reliability Compared to Optocouplers
Traditional optocouplers suffer from LED aging, which affects long-term performance. The ADUM6402CRWZ avoids this issue by using magnetic coupling, ensuring consistent performance over time.
3. High-Speed Communication
With support for up to 25 Mbps, it is well-suited for modern digital interfaces such as SPI, UART, and industrial communication protocols.
4. Strong Noise Immunity
The device provides excellent common-mode transient immunity (CMTI), making it ideal for noisy environments such as motor drives and power electronics.
5. Thermal and EMI Considerations
While integrating power conversion increases efficiency, it also introduces switching noise. Designers should optimize PCB layout and filtering to minimize EMI—this is a critical design consideration often overlooked.
Practical Design Insights
From an engineering perspective, the ADUM6402CRWZ is not just a component—it is a system-level simplification tool. By integrating isolation and power, it:
Reduces BOM complexity
Saves PCB space
Improves system reliability
However, designers should carefully consider:
Thermal management due to integrated power dissipation
EMI mitigation techniques, such as proper grounding and filtering
Output power limitations, ensuring it matches load requirements
This balanced view helps engineers avoid overdesign or misuse.
Typical Applications of ADUM6402CRWZ
1. Industrial Automation Systems
Isolation is essential in PLCs, motor drives, and fieldbus communication. The ADUM6402CRWZ enables:
Safe signal transfer between high-voltage and low-voltage domains
Reliable communication in electrically noisy environments
2. Power Supply and Energy Systems
In power conversion and monitoring systems, the device supports:
Isolated feedback loops
Gate driver signal isolation
Data communication across high-voltage barriers
3. Medical Equipment
Medical systems require strict isolation for patient safety. The ADUM6402CRWZ helps ensure:
Compliance with safety standards
Stable operation in sensitive environments
4. Data Acquisition and Measurement
Precision measurement systems benefit from:
Reduced ground loops
Clean signal transmission
Integrated power for isolated sensors
Why ADUM6402CRWZ Still Matters in Modern Designs
With the rise of highly integrated systems, engineers often face trade-offs between performance, cost, and complexity. The ADUM6402CRWZ strikes a strong balance by combining multiple functions into a single chip.
While newer solutions may offer higher power output or more channels, this device remains highly relevant due to:
Proven reliability in industrial environments
Simplified design architecture
Strong ecosystem support
In many cases, it enables faster time-to-market, which is a critical competitive advantage.
Reliable Supply from Perceptive Components
As a trusted electronic components distributor, Perceptive Components offers stable sourcing for ADUM6402CRWZ, supporting both prototyping and volume production needs. Customers benefit from:
Verified component authenticity
Flexible order quantities
Efficient global logistics
This ensures continuity in supply chains, especially for industrial and long lifecycle projects.
Conclusion
The ADUM6402CRWZ is more than a digital isolator—it is a highly integrated isolation solution that combines performance, reliability, and design efficiency. Its ability to deliver both data and power isolation makes it a valuable component across industrial, medical, and energy applications.
For engineers seeking to reduce complexity without compromising performance, the ADUM6402CRWZ remains a practical and forward-looking choice—especially when paired with reliable distribution support from Perceptive Components.
