The AD9361BBCZ is a high-performance, highly integrated RF Agile Transceiver designed by Analog Devices for use in 3G and 4G base station applications. Its flexible programmability and wideband capability make it suitable for a broad range of transceiver applications.
The AD9361BBCZ is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery.
Part Number: AD9361BBCZ
Manufacturer: Analog Devices Inc. (ADI)
Stock: 1000 pcs
Date Code: 24+
Package: 10 mm × 10 mm 144-ball CSP_BGA package
Key Technical Specifications of ADI AD9361BBCZ
The following table summarizes the core technical specifications for the AD9361BBCZ.
| Parameter | Specification |
| Product Name | AD9361 RF Agile Transceiver |
| Part Number (Tray) | AD9361BBCZ |
| Part Number (Reel) | AD9361BBCZ-REEL |
| Frequency Range (TX) | 47 MHz to 6.0 GHz |
| Frequency Range (RX) | 70 MHz to 6.0 GHz |
| Channel Bandwidth | <200 kHz to 56 MHz (Tunable) |
| RX Noise Figure | 2 dB @ 800 MHz (Maximum RX Gain) |
| TX EVM | ≤ -40 dB (800 MHz / 2.4 GHz) |
| TX Noise Floor | ≤ -157 dBm/Hz @800 MHz (90 MHz offset) |
| Digital Interface | Configurable CMOS/LVDS interface |
| Key Features | TDD/FDD support; 12-bit ADC/10-bit DAC; Integrated AGC; 128-tap programmable FIR filters; TX power monitor |
| Package | 10 mm × 10 mm, 144-ball CSP_BGA |
| Operating Temp. | −40°C to +85°C |
| MSL Level | Level 3 |
| Environmental | RoHS/REACH Compliant (Lead-free) |
Applications of AD9361BBCZ
The AD9361BBCZ is engineered for versatility in demanding radio frequency environments, supporting a wide range of communications infrastructure. Its primary use cases include:
Point-to-Point Communication Systems: Support reliable data transmission links requiring high spectral efficiency and performance.
Femtocell, Picocell, and Microcell Base Stations: Optimized for small-cell network architectures, providing the necessary integration to support compact, high-capacity wireless coverage.
General-Purpose Radio Systems: Offers a flexible platform for diverse radio applications, leveraging integrated fractional-N synthesizers, dual receivers with superior noise figures, and highly linear broadband transmitters to cover most licensed and unlicensed bands.
This integrated approach simplifies system design by reducing the need for external components while maintaining the performance required for complex wireless protocols.

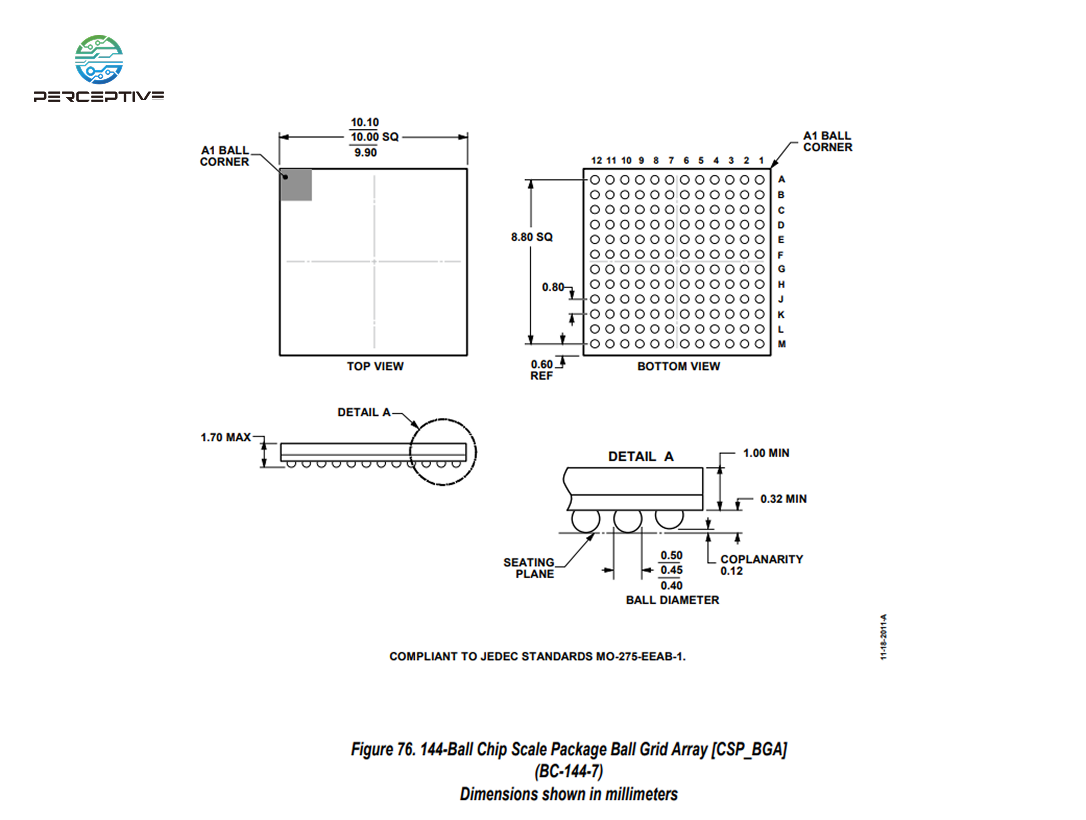

Package Information of ADI AD9361BBCZ
The AD9361BBCZ is housed in a 10 mm × 10 mm 144-ball CSP_BGA package, designed for high-density integration and efficient thermal management in industrial and communication-grade applications.
AD9361 Series
| AD9361BBCZ | AD9361BBCZ-REEL |
Why Source AD9361BBCZ from Perceptive Components?
Choosing Perceptive Components as your authorized partner for the AD9361BBCZ ensures seamless procurement for your critical projects:
Inventory Stability:We maintain massive stock levels, ensuring availability for both current production requirements and hard-to-find components.
Quality Assurance: All components undergo rigorous testing and inspection processes in our dedicated facilities to guarantee 100% genuine parts.
Global Logistics: We provide fast, reliable global shipping solutions for customers worldwide.
Competitive Pricing: By leveraging direct global sourcing, we provide the most competitive market pricing for the AD9361BBCZ.
Alternatives for AD9361BBCZ
Selecting the right replacement for the AD9361BBCZ requires careful consideration of your system's specific RF architecture, frequency coverage, and bandwidth requirements, as this highly integrated transceiver is central to many complex radio designs. If you are experiencing supply constraints or are looking for alternative solutions, consider these options:
AD9363 (Reduced Performance/Bandwidth Option): The AD9363 is a highly integrated RF transceiver that shares a similar architecture with the AD9361, making it a viable alternative for applications that do not require the full 6 GHz frequency range or the maximum bandwidth capabilities of the AD9361. It is frequently utilized in applications where a smaller power and performance footprint is acceptable.
AD9364 (Single-Channel Alternative): For designs that only require a 1x1 SISO (Single-Input Single-Output) configuration rather than the 2x2 MIMO capability of the AD9361, the AD9364 provides a streamlined solution. It retains the core high-performance RF features and broad frequency coverage of the AD9361 family while reducing system complexity and footprint.
If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements.
Secure Your Supply Chain Today
Don't let supply chain bottlenecks delay your product launch. At Perceptive Components, our dedicated procurement specialists are ready to assist with your specific volume requirements and technical needs.
Request a Quote for AD9361BBCZ Today!
Click here to receive a customized price offer based on your specific quantity and delivery timeline.
Download Full Technical AD9361BBCZ Datasheet (PDF)
Click the link above to access the official datasheet, including detailed system integration features, receiver and transmitter performance specifications, and complete electrical characteristics.
