The STM32F407ZGT6 from STMicroelectronics is a high-performance 32-bit microcontroller based on the Arm Cortex-M4 core with FPU, operating at up to 168 MHz and delivering up to 210 DMIPS. It integrates 1 MB Flash memory, 192 KB system SRAM plus 4 KB backup SRAM, three 12-bit ADCs, two 12-bit DACs, multiple timers, CAN, USB OTG, Ethernet MAC, SDIO, and a camera interface, making it suitable for demanding embedded control and connectivity applications.
The STM32F407ZGT6 is currently In Stock and ready for immediate shipping at Perceptive Components, with 2,880 pcs available and Date Code 26+. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery, supporting both production procurement and urgent component sourcing requirements.
Part Number: STM32F407ZGT6
Manufacturer: STMicroelectronics
Stock: 2,880 pcs
Date Code: 26+
Package: 144-Pin LQFP, 20 × 20 × 1.4 mm
Key Technical Specifications of ST STM32F407ZGT6
| Parameter | Specification |
| Core | Arm Cortex-M4 with FPU |
| Maximum Frequency | 168 MHz |
| Flash Memory | 1 MB |
| SRAM | 192 KB + 4 KB Backup SRAM |
| ADC | 3 × 12-bit, up to 24 channels |
| DAC | 2 × 12-bit |
| CAN | 2 × CAN 2.0B Active |
| Ethernet | 10/100 Mbps Ethernet MAC, IEEE 1588 |
| USB | USB 2.0 OTG FS/HS controller |
| GPIO | Up to 114 I/Os |
| Supply Voltage | 1.8 V to 3.6 V |
| Operating Temperature | -40°C to +85°C |
| Package | LQFP144, 20 × 20 × 1.4 mm |
| Environmental Compliance | ECOPACK2 |
| Packaging | Tray; Tape & Reel available as STM32F407ZGT6TR |
The official datasheet identifies the Z suffix as the 144-pin version, G as 1 MB Flash, T as LQFP, and 6 as the -40°C to +85°C industrial temperature range. The TR option specifies tape-and-reel packaging.
Applications of STM32F407ZGT6
The STM32F407ZGT6 combines high-speed processing, extensive I/O, analog functions, and communication interfaces for embedded control applications, including:
Industrial Automation: Suitable for PLCs, industrial controllers, circuit breakers, and monitoring equipment requiring real-time processing and multiple communication interfaces.
Motor Control: Its high-performance Cortex-M4 core, timers, PWM capabilities, ADCs, and DACs support motor-drive and application-control systems.
Industrial Networking: Integrated Ethernet MAC, CAN, USB, SPI, I²C, and USART interfaces support connected industrial equipment and communication systems.
Medical Equipment: Suitable for embedded control, data acquisition, monitoring, and communication functions in medical and laboratory equipment.
HVAC and Building Control: The MCU can support control, sensing, communication, and user-interface functions in HVAC and building automation systems.

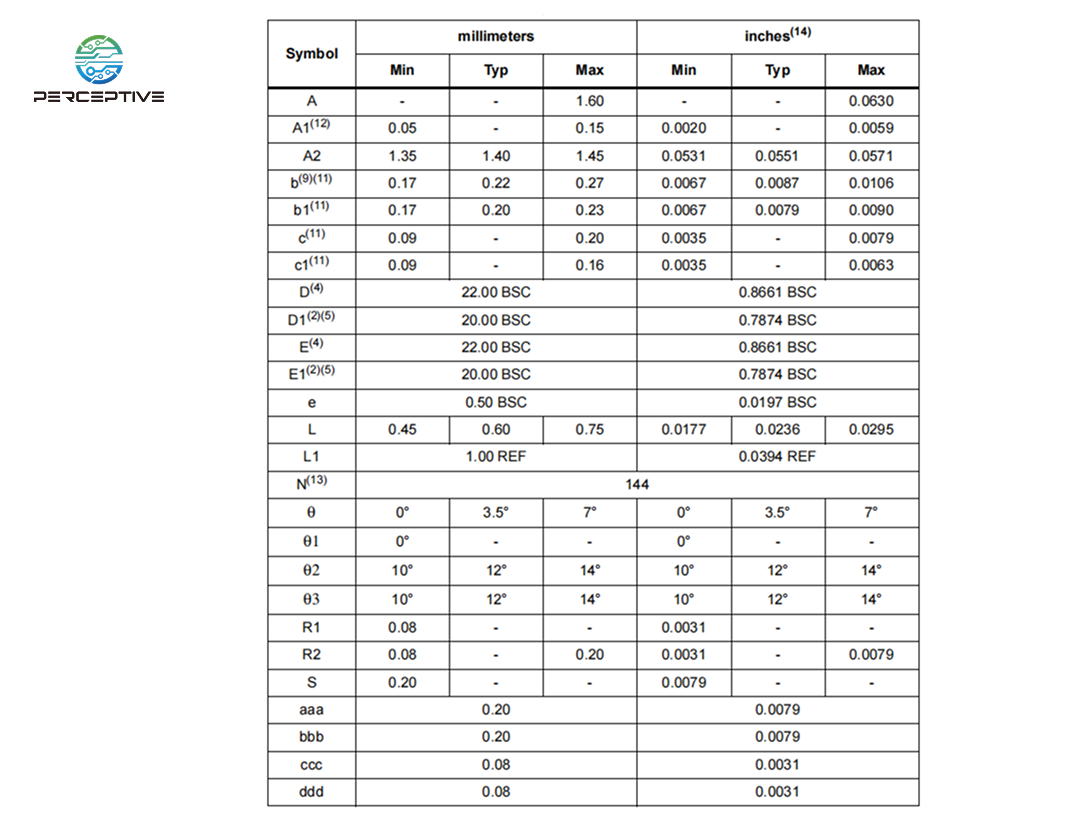

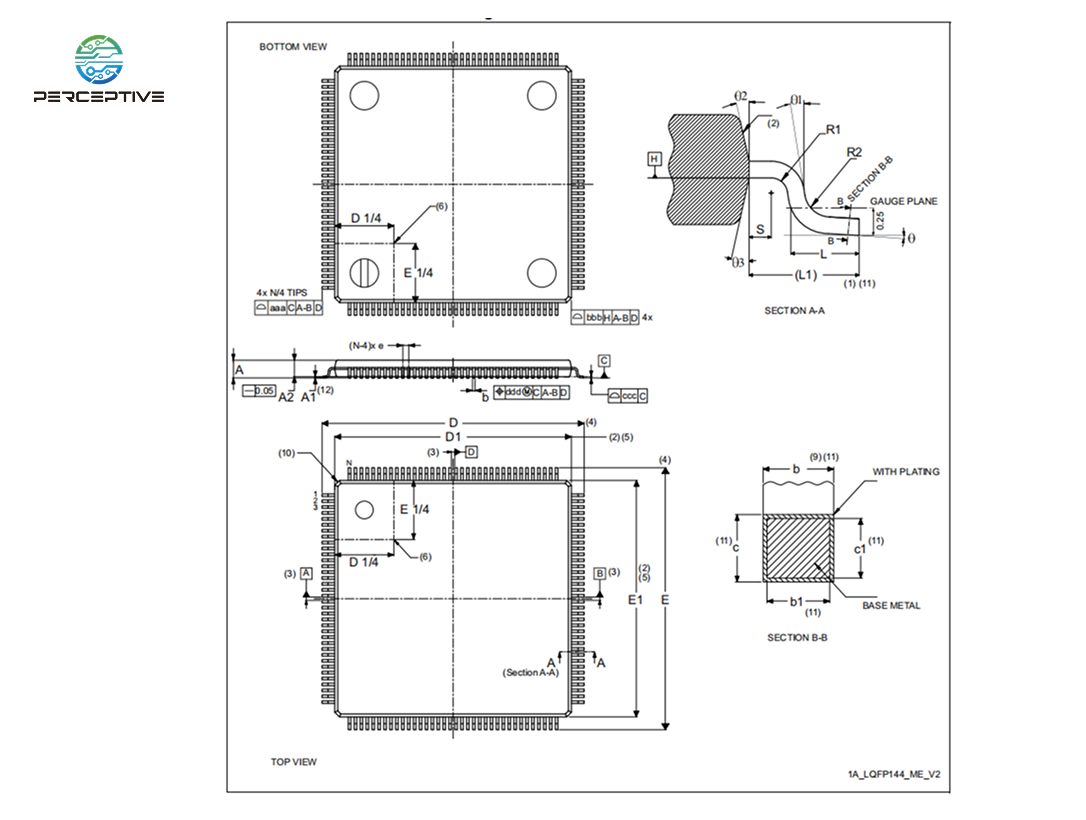

Package Information of ST STM32F407ZGT6
The STM32F407ZGT6 uses a 144-pin LQFP package measuring 20 × 20 × 1.4 mm with a 0.5 mm pitch. The package provides up to 114 I/O pins, making it suitable for designs requiring extensive peripheral connectivity.
STM32F407 series
| STM32F407VG | STM32F407IG | STM32F407ZG |
| STM32F407VE | STM32F407ZE | STM32F407IE |
Why Source STM32F407ZGT6 from Perceptive Components?
Choosing Perceptive Components as your sourcing partner for the STM32F407ZGT6 provides reliable supply support for ongoing production and urgent procurement:
Inventory Stability: We currently have 2,880 pcs of STM32F407ZGT6 in stock with Date Code 26+, supporting both production requirements and immediate sourcing needs.
Quality Assurance: Components undergo rigorous inspection and verification processes to support genuine and reliable parts sourcing.
Global Logistics: We provide fast and reliable global shipping solutions for customers worldwide.
Competitive Pricing: Through global sourcing channels and supplier relationships, we offer competitive pricing for STM32F407ZGT6 while maintaining component authenticity.
Alternatives for ST STM32F407ZGT6
If the STM32F407ZGT6 becomes unavailable or lead times increase, customers may consider the following related alternatives:
STM32F407ZGT7: A closely related 144-pin LQFP variant with 1 MB Flash, the same 168 MHz Cortex-M4 architecture, and an extended -40°C to +105°C temperature range. It can be considered where the higher temperature rating is required.
STM32F407ZET6: A related STM32F407 144-pin LQFP option with 512 KB Flash. It may be considered for designs where the reduced Flash capacity meets application requirements.
If you are facing lead time issues, contact Perceptive Components for potential replacement options based on your package, pinout, memory capacity, and application requirements.
Secure Your Supply Chain Today
Don't let MCU shortages or extended lead times affect your production schedule. At Perceptive Components, our dedicated sourcing specialists can support your STM32F407ZGT6 requirements with reliable supply solutions, competitive pricing, and global delivery capabilities.
Request a Quote for STM32F407ZGT6 Today!
Receive a customized quotation based on your required quantity, project timeline, and sourcing needs. With 2,880 pcs in stock and Date Code 26+, we can support both immediate and ongoing procurement requirements.
Access detailed technical documentation covering electrical characteristics, performance specifications, package information, pin configuration, and application guidance.
Perceptive Components is a leading global distributor specializing in TI, NXP, Microchip, and ST components. We excel in sourcing ready-to-ship spot stock for both new designs and EOL/scarce materials. Every part undergoes our rigorous professional QC protocol (X-Ray, Decapsulation, and Electrical Testing) to ensure 100% authenticity and traceability. From Aerospace to Automotive, we provide reliable supply chain solutions with rapid global delivery.
