The Texas Instruments UCC27524AQDRQ1 is a dual-channel, high-speed, low-side gate driver designed to drive MOSFET and IGBT power switches. It provides 5-A peak source and sink current, a 4.5-V to 18-V supply range, independent enable inputs, TTL/CMOS-compatible logic thresholds, and input pins rated to withstand voltages down to –5 V absolute maximum, making it well suited for demanding automotive and high-frequency power-switching designs.
The UCC27524AQDRQ1 is currently In Stock with 6K pcs and Date Code 26+ at Perceptive Components, ready to support immediate sourcing requirements. As an independent electronic components distributor, Perceptive Components focuses on verified component quality, supply continuity, competitive sourcing, and rapid global delivery for customers managing production and procurement requirements.
Part Number: UCC27524AQDRQ1
Manufacturer: Texas Instruments
Stock: 6K pcs
Date Code: 26+
Package: 8-Pin SOIC (D)
Packaging: LARGE Tape & Reel
Quantity per Reel: 3,000 pcs
Key Technical Specifications of TI UCC27524AQDRQ1
| Parameter | Specification |
| Device Type | Dual-channel low-side gate driver |
| Channels | 2 independent, non-inverting |
| Peak Source Current | 5 A |
| Peak Sink Current | 5 A |
| Supply Voltage (VDD) | 4.5 V to 18 V |
| Input Voltage Capability | –2 V to 18 V recommended operating range |
| Negative Input Capability | –5 V absolute maximum; –2 V to 18 V recommended operating range |
| Propagation Delay | 17 ns typical |
| Rise Time | 6 ns typical |
| Fall Time | 10 ns typical |
| Channel Delay Matching | 1 ns typical, 2 ns max |
| Input Logic | TTL/CMOS compatible |
| UVLO | Approx. 4 V typical |
| Operating Junction Temperature | –40°C to +140°C |
| Automotive Qualification | AEC-Q100, Temperature Grade 1 |
| Package | 8-Pin SOIC (D) |
| RoHS Status | RoHS Compliant |
| REACH Status | Yes |
| MSL | Level 1 / 260°C |
| Packaging | Tape & Reel, 3,000 pcs/reel |
The part features independent enable control for each output and keeps outputs low during VDD undervoltage lockout or when the input pins are floating. Its matched dual channels can also be paralleled to increase drive capability, although TI recommends appropriate PCB layout and gate-resistor provisions when directly paralleling the outputs.
Applications of UCC27524AQDRQ1
The UCC27524AQDRQ1 is designed for power-switching applications where fast and robust gate control is required. According to Texas Instruments, its listed applications include:
Automotive: Suitable for automotive power-switching applications requiring low-side gate driving.
Switch-Mode Power Supplies: Provides high-peak-current gate drive for fast switching power stages.
DC-to-DC Converters: Supports efficient switching of power MOSFETs in DC-to-DC conversion architectures.
Motor Control: Applicable to motor-control power stages requiring fast, high-current gate charging and discharging.
Solar Power Systems: Can be used to drive switching devices in solar power conversion equipment.
GaN Power Device Gate Drive: Its low propagation delay, tight channel matching, and low-voltage operation make it suitable for emerging wide-bandgap devices such as GaN.
Package Information of TI UCC27524AQDRQ1

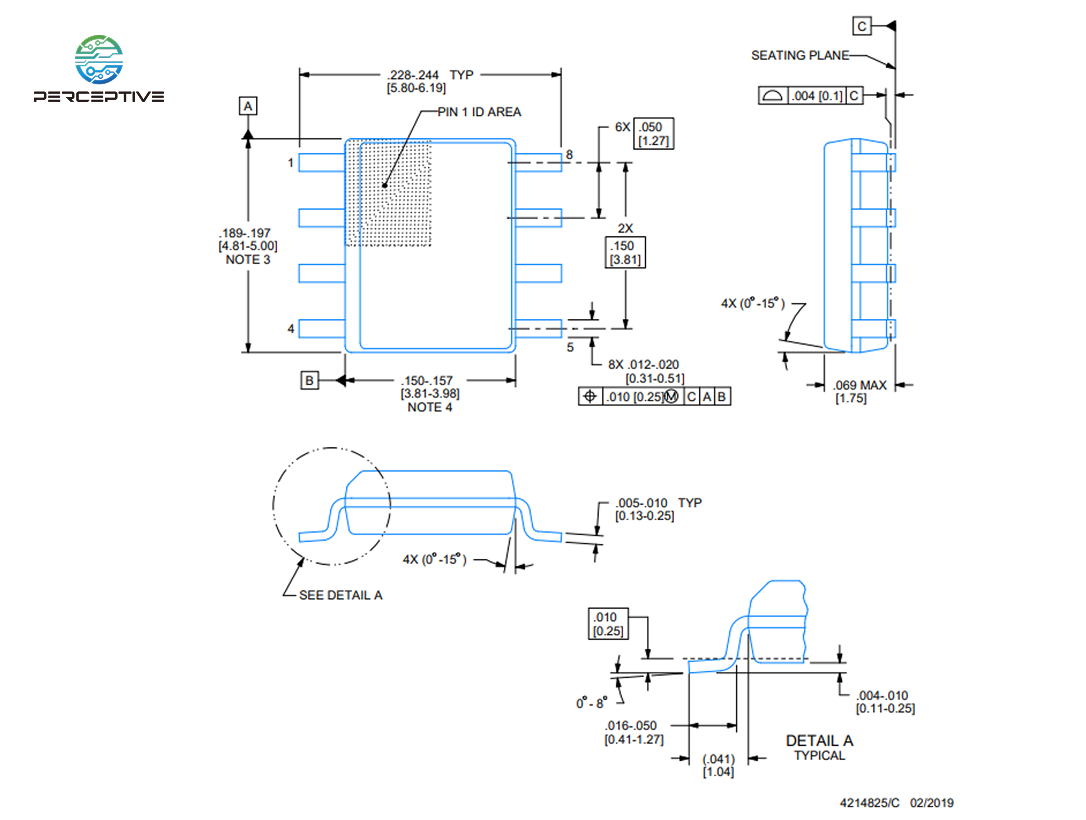

The UCC27524AQDRQ1 uses an 8-pin SOIC (D) package with a nominal body size of 4.90 mm × 3.91 mm. The orderable part is supplied in LARGE Tape & Reel packaging with 3,000 units per reel.
Why Source UCC27524AQDRQ1 from Perceptive Components?
Choosing Perceptive Components as your sourcing partner for the UCC27524AQDRQ1 provides procurement teams with a supply-focused approach to automotive and power-management components:
Inventory Stability: 6K pcs of UCC27524AQDRQ1 in stock with Date Code 26+, supporting immediate requirements as well as planned production demand.
Quality Assurance: Components are subject to inspection and verification procedures designed to support genuine-part sourcing and consistent procurement quality.
Global Logistics: Reliable international logistics solutions help customers manage delivery requirements across global manufacturing locations.
Competitive Pricing: Global sourcing channels and supplier relationships enable competitive quotations for UCC27524AQDRQ1 while maintaining sourcing and quality requirements.
Alternatives for TI UCC27524AQDRQ1
If the UCC27524AQDRQ1 becomes unavailable or lead times increase, customers may consider the following related option:
UCC27524AQDGNRQ1: A related UCC27524A-Q1 variant using the same dual 5-A low-side gate-driver architecture but in an 8-pin HVSSOP PowerPAD (DGN) package. It can be considered when the application can accommodate the different package and PCB footprint. TI currently lists this variant as NRND, so package and lifecycle requirements should be reviewed before qualification.
If you are facing lead time issues, contact Perceptive Components for recommended alternative solutions based on your package, pinout, electrical requirements, and application needs.
Secure Your Supply Chain Today
Don't let component shortages or extended lead times affect your production schedule. Perceptive Components supports UCC27524AQDRQ1 sourcing with verified supply channels, competitive procurement solutions, and global delivery capabilities.
Receive a customized quotation based on your required quantity, project timeline, and sourcing needs. With 6K pcs in stock and Date Code 26+, Perceptive Components can support both immediate and ongoing procurement requirements.
Access the technical documentation for detailed electrical characteristics, switching performance, pin configuration, package information, and application guidance.
