ADGS1414DBCCZ-RL7 Analog Devices Inc.

Name: ADGS1414DBCCZ-RL7
Brand: Perceptive Component Limited
SKU: ADGS1414DBCCZ-RL7
Price: 0.001 USD
Availability: InStock
Rating: 88 (96 reviews)

Technical Parameters

Part Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1
Number of Circuits	8
On-State Resistance(Max)	1.8Ohm
Channel-to-Channel Matching(△Ron)	300mOhm
Voltage-Supply,Single(V+)	5V ~ 20V, ±4.5V ~ 16.5V
Voltage-Supply,Dual(V±)	5V ~ 20V, ±4.5V ~ 16.5V
Switch Time(Ton,Toff)(Max)	475ns, 190ns
-3db Bandwidth	170MHz
Charge Injection	-20pC
Channel Capacitance(CS(off),CD(off))	20pF, 21pF
Current-Leakage(IS(off))(Max)	30pA
Crosstalk	-75dB @ 1MHz
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount

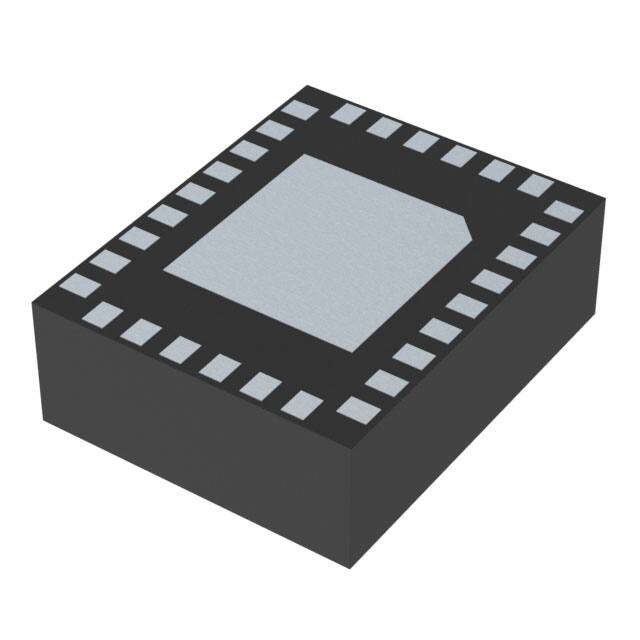

Package/Case	30-FLGA Exposed Pad
Supplier Device Package	30-LGA (4x5)
Base Product Number	ADGS1414
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level(MSL)	3 (168 Hours)
