AEC Q100 test standard for automotive grade chips

Published Time: 2022-09-30 11:38:41
Automotive chips need to meet the AECQ standard, so when selecting chips, let the sales of the corresponding chip companies give some recommendations for what type of chips are needed.

1. Standards for automotive semiconductor devices

AEC is actually the abbreviation of Automotive Electronics Council, and the AECQ standard includes the following areas. For electronic devices in different fields, different standards are applicable. At present, the most common ones are AEC-Q100, AEC-Q101, and AEC-Q200.

Standard category

Applicable fields

AEC-Q100

Integrated Circuit IC

AEC-Q101

Discrete device

AEC-Q102

Discrete Photoelectric LEDs

AEC-Q103

sensor

AEC-Q10 4

Multichip Components

AEC-Q200

passive device

2. Substandards of AEC-Q100

Similar to the DV test of general auto parts, the AECQ standard is actually a test standard that recognizes the design of the chip itself. It is divided into different test sequences to test the chip in different dimensions.

Since the hottest chips are currently the focus of the country and even the world, let's take a look at the test standards for chips first. AEC-Q100 is divided into 13 sub-standards, namely AEC-Q100 main standard and 12 sub-standards from 001 to 012.

standard encdoing

standard name

AEC-Q100 Rev-H

Failure Mechanism Based Stress Test Qualification For Integrated  Circuits(base document

AEC-Q100-001

Wire Bond Shear Test

AEC-Q100-002

Human Body Model (HBM) Electrostatic Discharge Test

AEC-Q100-003

Machine Model (MM) Electrostatic Discharge Test

AEC-Q100-004

IC Latch-Up Test

AEC-Q100-005

Non-Volatile Memory Program/Erase Endurance, Data Retention, and  Operational Life Test

AEC-Q100-006

Electro-Thermally Induced Parasitic Gate Leakage Test (GL)

AEC-Q100-007

Fault Simulation and Test Grading

AEC-Q100-008

Early Life Failure Rate (ELFR)

AEC-Q100-009

Electrical Distribution Assessment

AEC-Q100-010

Solder Ball Shear Test

Test sequence A

Accelerated Environment Stress

Test sequence B

Accelerated Lifetime Simulation

Test sequence C

Package Assembly Integrity

Test sequence D

Die Fabrication Reliability

Test sequence E

Electrical Verification

Test sequence F

Defect Screening

Test sequence G

Cavity Package Integrity

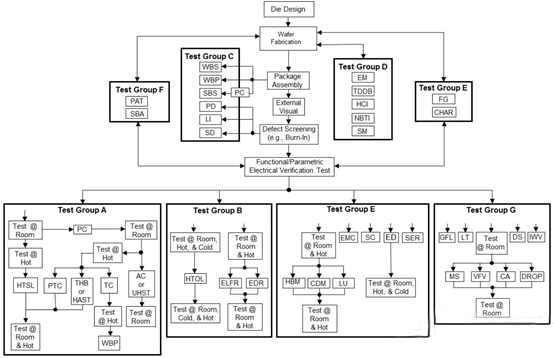

Like the sequence and classification of the DV test, the chip test certification includes a total of 7 sequences, as follows, and the tests of these seven sequences also refer to those test methods defined in AEC-Q100.

The test of the chip also has a certain test sequence, which is also defined in the AEC-Q100 standard. There are a total of 7 test sequences, which add up to 42 test items according to the two levels. These test items are not suitable for all ICs. It is necessary to test the adaptability according to the type of IC, and also need to test according to the temperature level of the chip. Modification of conditions.


The test temperature is also known as the Grade level. In the automotive chip, it is divided into 4 temperature levels, as follows:


Grade

Ambient Operating Temperature Range

0

-40°C  to + 150°C

1

-40°C to + 125°C

2

-40°C  to + 105°C

3

-40°C  to + 85°C

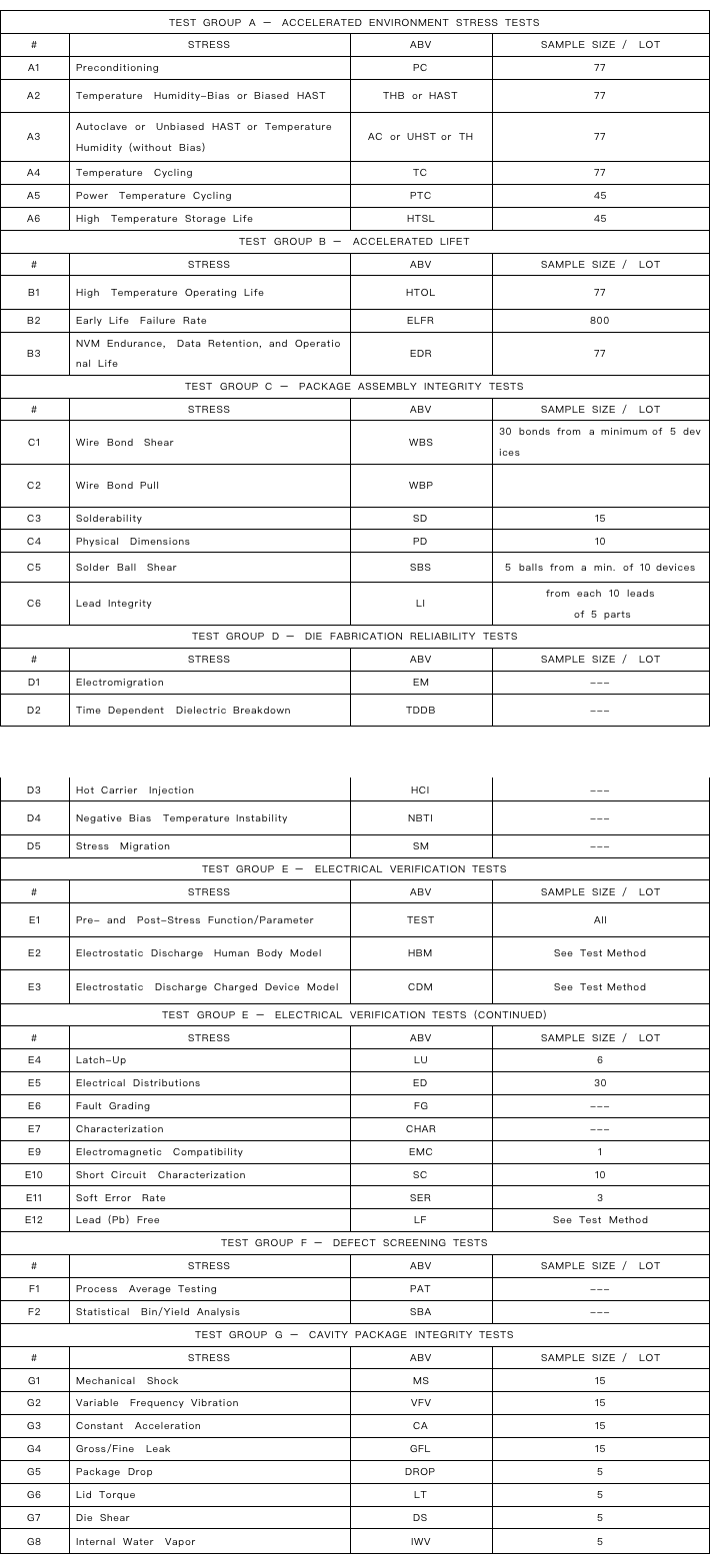

The detailed test items in each test sequence are also described in detail in the AEC-Q100 standard, and the test time of each test is also given different requirements according to the Grade level. In the test of AEC-Q100, for sequence A, the number of samples tested is 77, and 0 Fails is required, which greatly increases the confidence of the chip test.




TEST GROUP A –  ACCELERATED   ENVIRONMENT STRESS TESTS

#

STRESS

ABV

SAMPLE SIZE /  LOT

A1

Preconditioning

PC

77

A2

Temperature    Humidity-Bias or Biased HAST

THB or HAST

77

A3

Autoclave   or  Unbiased HAST or Temperature Humidity (without Bias)

AC or UHST or TH

77

A4

Temperature    Cycling

TC

77

A5

Power    Temperature Cycling

PTC

45

A6

High    Temperature Storage Life

HTSL

45

TEST GROUP B –  ACCELERATED LIFET

#

STRESS

ABV

SAMPLE SIZE /  LOT

B1

High    Temperature Operating Life

HTOL

77

B2

Early Life    Failure Rate

ELFR

800

B3

NVM   Endurance,  Data Retention, and Operational Life

EDR

77

TEST GROUP C –  PACKAGE ASSEMBLY   INTEGRITY TESTS

#

STRESS

ABV

SAMPLE SIZE /  LOT

C1

Wire Bond    Shear

WBS

30 bonds   from a minimum of 5 devices

C2

Wire Bond Pull

WBP


C3

Solderability

SD

15

C4

Physical    Dimensions

PD

10

C5

Solder Ball    Shear

SBS

5 balls from a min. of 10 devices

C6

Lead   Integrity

LI

from each 10 leads
   of 5 parts

TEST GROUP D –  DIE FABRICATION   RELIABILITY TESTS

#

STRESS

ABV

SAMPLE SIZE /  LOT

D1

Electromigration

EM

---

D2

Time   Dependent  Dielectric Breakdown

TDDB

---

D3

Hot Carrier    Injection

HCI

---

D4

Negative   Bias  Temperature Instability

NBTI

---

D5

Stress    Migration

SM

---

TEST GROUP E –  ELECTRICAL VERIFICATION   TESTS

#

STRESS

ABV

SAMPLE SIZE /  LOT

E1

Pre- and    Post-Stress Function/Parameter

TEST

All

E2

Electrostatic   Discharge  Human Body Model

HBM

See Test Method

E3

Electrostatic    Discharge Charged Device Model

CDM

See Test Method

TEST GROUP E –  ELECTRICAL   VERIFICATION TESTS (CONTINUED)

#

STRESS

ABV

SAMPLE SIZE /  LOT

E4

Latch-Up

LU

6

E5

Electrical   Distributions

ED

30

E6

Fault   Grading

FG

---

E7

Characterization

CHAR

---

E9

Electromagnetic    Compatibility

EMC

1

E10

Short Circuit    Characterization

SC

10

E11

Soft Error    Rate

SER

3

E12

Lead (Pb)   Free

LF

See Test Method

TEST GROUP F –  DEFECT SCREENING TESTS

#

STRESS

ABV

SAMPLE SIZE /  LOT

F1

Process    Average Testing

PAT

---

F2

Statistical    Bin/Yield Analysis

SBA

---

TEST GROUP G –  CAVITY PACKAGE   INTEGRITY TESTS

#

STRESS

ABV

SAMPLE SIZE /  LOT

G1

Mechanical    Shock

MS

15

G2

Variable    Frequency Vibration

VFV

15

G3

Constant    Acceleration

CA

15

G4

Gross/Fine    Leak

GFL

15

G5

Package   Drop

DROP

5

G6

Lid Torque

LT

5

G7

Die Shear

DS

5

G8

Internal   Water  Vapor

IWV

5
