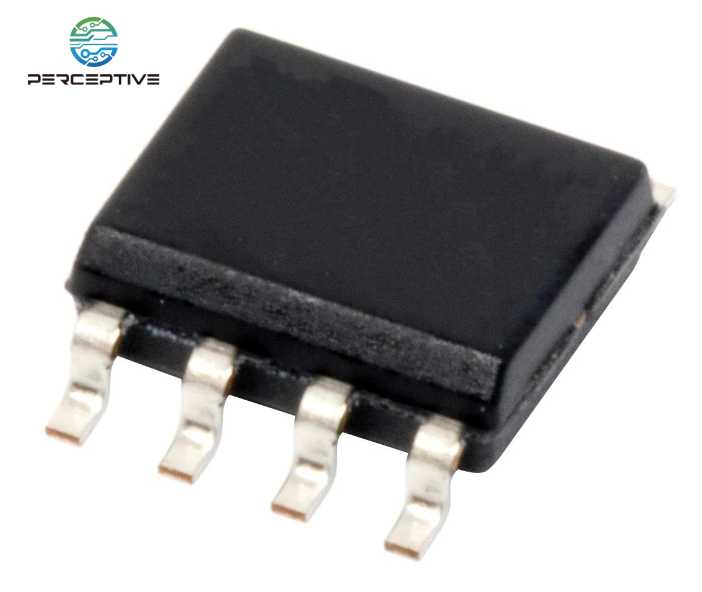

In high-precision electronics, data acquisition systems, and industrial instrumentation, the stability of the voltage reference directly dictates the performance of the entire signal chain. The Analog Devices REF192GSZ is an industry-standard, precision band gap voltage reference engineered to deliver exceptional initial accuracy and an ultra-low temperature coefficient. Operating as a micropower, low dropout voltage (LDV) device, it provides a stable 2.5 V output from supplies as low as 100 mV above the output, while consuming less than 45 µA of supply current.
The REF192GSZ is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery, helping B2B procurement managers maintain seamless production timelines.
Part Number: REF192GSZ
Manufacturer: Analog Devices Inc.
Stock: 3,000 pcs
Date Code: 2024+
Package: SOP8
Key Technical Specifications of Analog Devices REF192GSZ
When evaluating the REF192GSZ Analog Devices voltage reference for your next hardware build, precise technical parameters are critical. The table below outlines the core electrical, thermal, and mechanical specifications of this high-demand integrated circuit:
Parameter | Technical Specification |
Manufacturer | Analog Devices Inc. (ADI) |
Part Number | REF192GSZ |
Output Voltage (VOUT) | 2.5 V |
Initial Accuracy | ±10mV (Maximum) |
Temperature Coefficient | 25 ppm/°C (Maximum) |
Max Output Current | 30 mA |
Supply Current | 45 µA (Maximum) |
Operating Temperature Range | -40°C to +85°C (Extended Industrial) |
Package Type | 8-Lead SOIC_N (Narrow Small Outline Package) |
RoHS/REACH Status | RoHS Compliant & Lead-Free |
Key Applications of ADI REF192GSZ
Thanks to its unique patented temperature drift curvature correction circuit, laser-trimmed thin-film resistors, and a dedicated sleep mode (enabled via a low TTL/CMOS level on the SLEEP pin), the REF192GSZ is highly versatile. It is widely adopted across multiple high-reliability sectors:
Portable Instruments: Ideal for battery-powered devices due to its ultra-low power consumption and micropower sleep mode.
High-Resolution ADCs and DACs: Serves as a rock-solid, low-noise external reference for precision data converters, ensuring minimal quantization errors.
Smart Sensors: Provides precise bias voltages in distributed sensor networks where supply rails fluctuate.
Loop-Current-Powered Instruments: Excellent for industrial 4–20 mA current loops, thanks to its high 30 mA output current drive capability.
Solar-Powered Applications: Minimizes the system power budget during inactive periods via the sleep mode functionality.

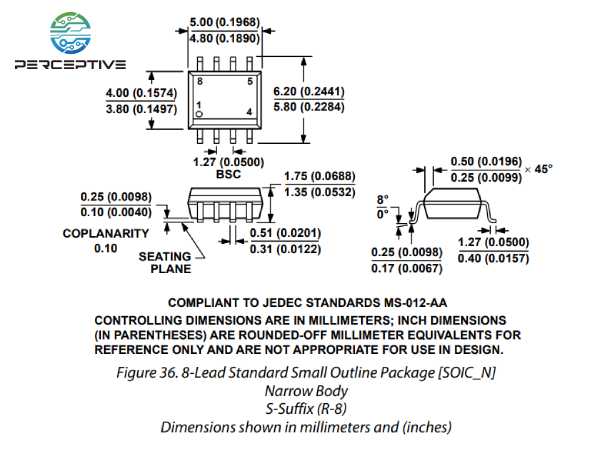

Package and Pin Configuration of REF192GSZ
The diagram below illustrates the pin configuration (top view) for the Analog Devices REF192GSZ 8-lead narrow SOIC package.
Why Source REF192GSZ from Perceptive Components?
Navigating component shortages and unpredictable factory lead times requires a reliable supply chain partner. When procurement managers need to buy REF192GSZ online, they partner with Perceptive Components to guarantee quality, speed, and cost-efficiency.
Inventory Stability: We maintain a massive stock available for both current high-running parts and hard-to-find legacy components, shielding your production from market allocation.
Quality Assurance: Counterfeit mitigation is central to our operations. We utilize rigorous testing and inspection processes to guarantee genuine components, ensuring every REF192GSZ shipped complies with original factory standards.
Global Logistics: Our global logistics network facilitates fast shipping to North America, Europe, and Asia, mitigating expensive line-down crises.
Competitive Pricing: Through our direct sourcing networks and strong manufacturer relationships, we deliver the most competitive REF192GSZ price available in the open market.
Pin-Compatible Alternatives & Migration Path
If you are facing severe factory allocation or lead-time bottlenecks, the Analog Devices REF19x family offers excellent options. The following parts utilize the same 8-lead SOIC_N footprint and architecture, allowing for straightforward substitution depending on your voltage requirements:
REF195GSZ: A pin-compatible alternative delivering a stable 5.0 V output. Excellent if your signal chain can accommodate or benefit from a higher reference voltage.
REF198GSZ: Another drop-in option providing a 4.096 V output, frequently used in 12-bit binary data conversion systems.
If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements. As a trusted REF192GSZ distributor, our component engineers are ready to help you evaluate the best active cross-references for your layout.
Buy REF192GSZ Online Now
Bypass global distribution allocations and keep your product rollout on schedule. We have immediate, shippable stock of REF192GSZ Analog Devices voltage references available today.
Request a Quote for REF192GSZ—our team is standing by to provide real-time pricing and live inventory availability.
Download the official Analog Devices Inc. REF192GSZ Datasheet PDF for full technical and packaging specifications.
