The SSM2141PZ is a high-performance, integrated differential amplifier specifically engineered for balanced audio line input applications. By leveraging advanced design, the SSM2141PZ provides superior noise immunity and optimum common-mode rejection (CMR), far exceeding the performance of standard op-amps paired with discrete resistors.
The SSM2141PZ is currently In Stock and ready for immediate shipping at Perceptive Components. As a leading independent distributor, we ensure 100% authenticity and rapid global delivery for your critical projects.

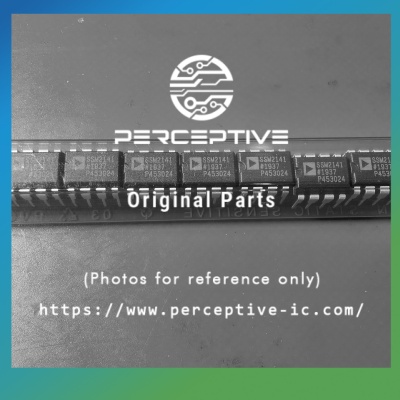

Part Number: SSM2141PZ
Manufacturer: Analog Devices Inc. (ADI)
Stock: 600 pcs
Date Code: 21+
Package: 8-Lead PDIP
Key Technical Specifications of ADI SSM2141PZ
Parameter | Specification |
Manufacturer | Analog Devices |
Common-Mode Rejection (DC) | 100 dB (typ) |
Total Harmonic Distortion | 0.001% (typ) @ RL=100kΩ |
Slew Rate | 9.5 V/µs (typ) |
Bandwidth (-3 dB) | 3 MHz (typ) |
RoHS/REACH Status | RoHS Compliant |
Packaging | 8-Lead PDIP |
Operating Temp. Range | -40°C to +85°C |
Note: Moisture Sensitivity Level (MSL) should be verified based on the specific date code/lot provided upon inquiry.
Applications of SSM2141PZ
The SSM2141PZ is widely utilized in professional audio and high-performance instrumentation systems, including:
Balanced Line Receivers: Providing excellent noise rejection for long cable runs.
Summing Amplifiers: Ideal for mixing audio signals with minimal distortion.
Buffer Amplifiers: Capable of driving 600 Ω loads, making it perfect for low-distortion output stages.
Differential Preamplifiers: Used where high accuracy and precision are required.

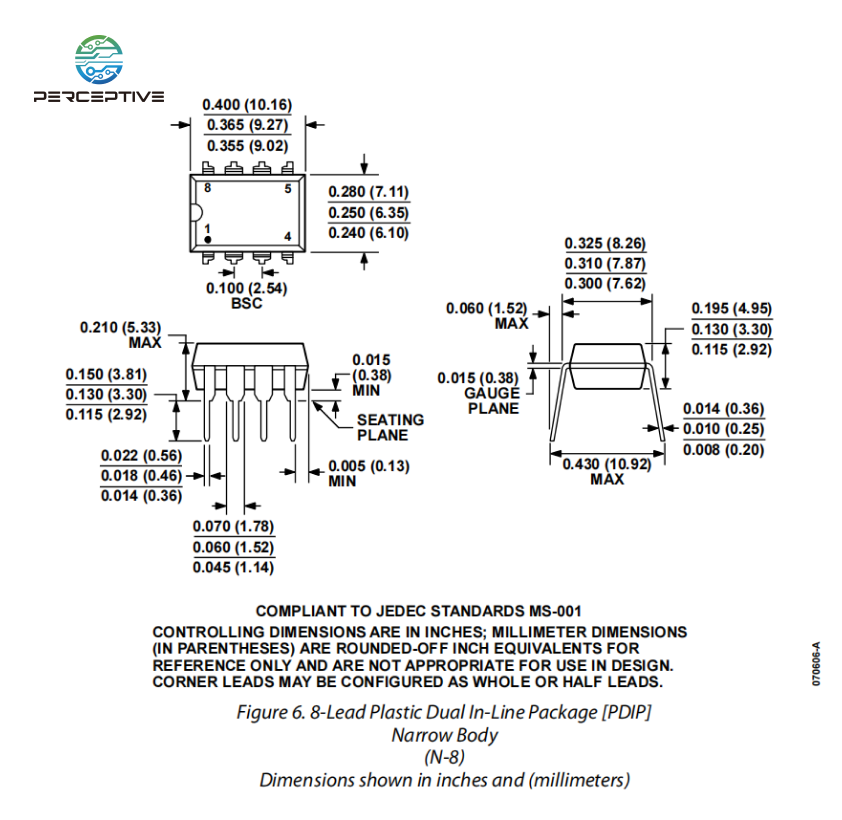

Package Information of ADI SSM2141PZ
The SSM2141PZ is housed in an 8-lead PDIP (Plastic Dual In-Line Package), designed for robust mounting and reliable thermal performance in industrial and commercial applications.
SSM2141 Series
| SSM2141PZ | SSM2141SZ | SSM2141SZ-REEL |
Why Source SSM2141PZ from Perceptive Components?
Choosing Perceptive Components as your supply chain partner provides distinct advantages:
Inventory Stability: We maintain massive stock levels, ensuring availability for both current production requirements and hard-to-find components.
Quality Assurance: Our rigorous testing and inspection protocols guarantee that every SSM2141PZ you receive is 100% genuine and meets manufacturer standards.
Global Logistics: We provide rapid, reliable shipping solutions to North America, Europe, and Asia, minimizing downtime for your production lines.
Competitive Pricing: Through direct sourcing strategies, we provide the most competitive market pricing for the SSM2141PZ.
Alternatives for SSM2141PZ
Selecting the right replacement for the SSM2141PZ is critical, as its internal precision-matched resistor network is essential for achieving 100 dB of common-mode rejection. If you are experiencing supply constraints or are looking for modern alternatives, consider these options:
SSM2143 (Low-Gain Version): The SSM2143 is an ideal companion if your application requires a gain configuration of G=1/2. It retains the superior audio performance and high noise immunity of the SSM2141 family.
AD8273 (High-Performance Precision Differential Amplifier): For designs requiring enhanced flexibility or integration within modern, compact audio systems, the AD8273 is a powerful choice. While it utilizes a different internal topology, it is engineered for high-precision audio and provides excellent CMR and low-distortion characteristics.
If you are facing lead time issues, contact Perceptive Components for recommended drop-in replacements.
Secure Your Supply Chain Today
Don't let supply chain bottlenecks delay your product launch. At Perceptive Components, our dedicated procurement specialists are ready to assist with your specific volume requirements and technical needs.
Request a Quote for SSM2141PZ Today!
Click here to receive a customized price offer based on your specific quantity and delivery timeline.
Download Full Technical SSM2141PZ Datasheet (PDF)
Click the link above to access the official datasheet, including detailed PCB layout recommendations, common-mode rejection (CMR) performance curves, and complete electrical characteristics.
