ROYALOHM Datasheet:
PDM025JW153B00.pdf
Description

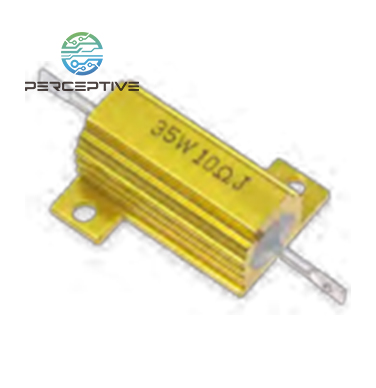

Manufacturer ROYALOHM Resistor RES.AL.CLAD 25W 15K Ohms 5% POWER DISSIPANTION CHA
Performance | Specification |
Temperature Coeffcient | <20Ω±400PPM /°C; |
Short Time Overload | ± (5.0% + 0.05Ω) Max, with no evidence of mechanical damage. |
Dielectric Withstanding Voltage | No evidence of flashover, mechanical damage, arcing or insulation breakdown. |
Terminal Strength | No evidence of mechanical damage. |
Resistance to Soldering Heat | ±(1.0%+ 0.05Ω) Max, with no evidence of mechanical damage. |
Solderability | Min.95% coverage. |
Temperature Cycling | ±(5.0%+ 0.05Ω)Max, with no evidence of mechanical damage. |
Humidity (Steady State) | ±(3.0%+ 0.05Ω) Max, with no evidence of mechanical damage. |
Load Life in Humidity | For Wire-wound range, |
Load Life | For Wire-wound range, |
Features:
Low inductance
Safety fIameproof construction
Lightweight body with high power rating
Application: power supply, Adapter, Industrial application, Inverter
| Style | A±1 | B±2 | C±1 | D±1 | E±1 | F±1 | H±1 | K Max | L±0.5 | d₁ ±0.2 | d₂ ±0.2 | |||
| PDM1 5W | 16.5 | 34 | 8 | 8.5 | 15 | 10 | 12.5 | 2.5 | 2 | 0.8 | - | |||
| PDM1 10W | 22.5 | 33.5 | 10.5 | 10.5 | 20 | 13 | 15.5 | 3.2 | 3 | 2 | 0.8 | |||
| PDM1 25W PDMS 25W | 27 | 49 | 14 | 13.5 | 28 | 18 | 19 | 3.2 | 4 | 2 | 0.8 | |||
| PDM1 35W | 29 | 60 | 15.5 | 15.5 | 33 | 23 | 23.5 | 3.2 | 3.5 | 2 | 0.8 | |||
| PDM1 50W PDMS 50W | 30 | 75 | 16 | 15.5 | 50 | 40 | 21.5 | 3.2 | 3.5 | 2 | 0.8 | |||
| PDM1 75W | 47.5 | 88 | 26 | 27 | 66 | 36 | 37 | 3.7 | 4.5 | 2.3 | 1.1 | |||
| PDM1 85W | 29 | 100 | 15.5 | 15.5 | 75.5 | 40 | 20.5 | 3.2 | 3.5 | 2 | 0.8 | |||
| PDM1 100W | 48 | 120 | 26 | 27 | 98 | 72 | 37 | 3.7 | 4.5 | 2 | 0.8 | |||
| Style | A±0.5 | B±1 | C±0.5 | D±2 | E±0.5 | F±0.2 | H±0.2 | K Max | L±0.5 | d₁ ±0.05 | d₂ ±0.2 | |||
| PDM0 5W | 16 | 32.5 | 8 | 8 | 15.5 | 11 | 12 | 2.5 | 2 | 1 | 0.3 | |||
| PDM0 10W | 22.3 | 40.5 | 12.2 | 11 | 20.5 | 15.2 | 17.2 | 3.2 | 2.5 | 2 | 0.8 | |||
| PDM0 25W | 30.3 | 45.5 | 16.3 | 14 | 27.5 | 18.2 | 20.2 | 3.2 | 3 | 2 | 0.8 | |||
| PDM0 35W | 30.3 | 56.5 | 16.3 | 16.3 | 34.5 | 24.2 | 20.2 | 3.2 | 3 | 2 | 0.8 | |||
| PDM0 50W | 30.3 | 78.5 | 15.7 | 16.5 | 50.5 | 40.2 | 20.2 | 3.2 | 3 | 2 | 0.8 | |||
| Style | Power Rating at 70℃ | Max Working Voltage | Lowest Ohmic Value | Standard Resistance Range | Highest Ohmic Value | |||||||
| PDM 5W | 5W | 200V | 0.01Ω | 5.1Ω～1KΩ | 1.8KΩ | |||||||
| PDM 10W | 10W | 265V | 0.05Ω | 5.1Ω~1.5KΩ | 5KΩ | |||||||
| PDM 25W | 25W | 550V | 0.05Ω | 5.1Ω～8.2KΩ | 12KΩ | |||||||
| PDM 35W | 35W | 950V | 0.05Ω | 5.1Ω~8.2KΩ | 15KΩ | |||||||
| PDM 50W | 50W | 1250V | 0.05Ω | 5.1Ω~20KΩ | 35KΩ | |||||||
| PDM 75W | 75W | 1400V | 0.05Ω | 0.1Ω~20KΩ | 35KΩ | |||||||
| PDM 85W | 85W | 1400V | 0.05Ω | 0.1Ω～20KΩ | 35KΩ | |||||||
| PDM 100W | 100W | 1900V | 0.05Ω | 1Ω～3KΩ | - | |||||||
